Model Concepts Garage Apartment Plans ADU For Sale Exterior View

When you enter the upstairs apartment, you will be greeted with high vaulted ceilings and an open living area / kitchen.  The full size kitchen has generous counter space, full-size appliances, a pantry, and an island for seating.  The living area has plenty of room for a large sectional and office desk...perfect for working and relaxing.

The separate large bedroom has high vaulted ceilings and space for a king-size bed.  The bedroom also features a generous walk-in closet.  The bathroom includes abundant counter space and a luxurious walk-in tiled shower.  The bathroom also includes a stackable full-size washer / dryer behind a separate door.

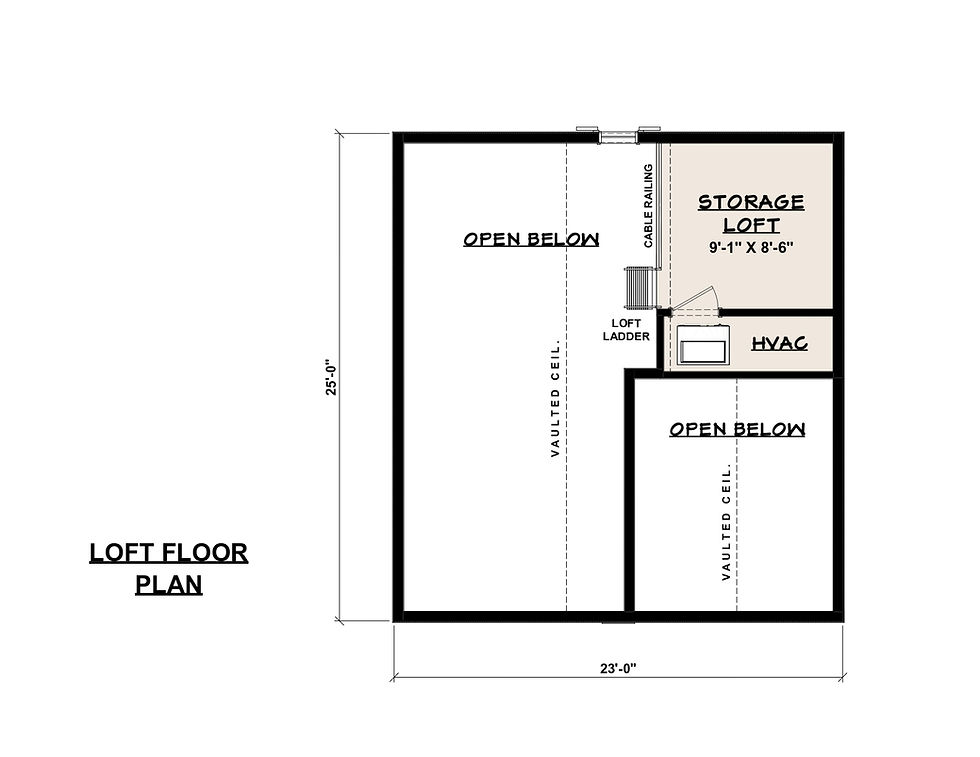

Going up the retractable ladder, the bonus loft can be used for storage, or it can even be used as a hobby space or office as well.  The outside deck has room for a full-size grill or just to relax outside.  Downstairs, the oversized 24' deep garage has an optional storage closet and space for a workbench and sink.

This plan works amazing for a guest house, extended family / in-law suite, a rental apartment, accessory dwelling unit (ADU)...or if you just want somewhere to get away and relax.


Garage Apartment / Carriage House Plan #30010A Specifications:

SQUARE FOOTAGE:
  • Heated SF (2nd Floor):  575 SF
  • Storage Loft:  75 SF
  • 2-Car Garage (unheated):  575 SF

Exterior Stairs:  69 SF
Deck:  44 SF

BEDROOMS:  1
BATHS:  1

DIMENSIONS:
  •  Width:  23'-0"W  (26'-8" with stairs)
  •  Depth:  25'-0"D  (31'-8" with rear deck above)
TOP OF RIDGE / HEIGHT:  28'-10" Above Grade
MAIN ROOF PITCH:  9/12
FOUNDATION:  Concrete Slab On Grade
EXTERIOR WALLS:  2X6 Construction
CEILING HEIGHTS:
  • Garage:  9'-6"
  • 2nd FLoor:  8'-8" Wall Height (Vaulted Ceilings)
INSULATION VALUES:
  •  Roof:  R-30
  •  2x6 Exterior Walls:  R-21
  •  Garage Ceiling:  R-21


14-Sheet 24"x36" Construction Document PDF Set Includes:

1  A-001 - TITLE SHEET
2  A-002 - DISCLAIMERS
3  A-101 - FLOOR PLANS (FIRST FLOOR, SECOND FLOOR, LOFT), ROOF PLAN
4  A-102 - WINDOW & DOOR SCHEDULE, ENLARGED KITCHEN PLANS, KITCHEN ELEVATIONS
5  A-201 - EXTERIOR ELEVATIONS
6  A-301 - EXTERIOR RENDERINGS
7  A-302 - INTERIOR RENDERINGS
8  A-401 - BUILDING SECTION - A-A
9  A-402 - BUILDING SECTION - B-B
10  A-403 - GABLE WALL SECTION, EXTERIOR STAIR DETAIL
11  A-404 - FIBER-CEMENT LAP SIDING DETAILS
12  E-101 - ELECTRICAL PLANS (FIRST FLOOR, SECOND FLOOR, LOFT)
13  S-101 - STRUCTURAL NOTES
14  S-102 - FOUNDATION PLAN, FRAMING PLANS, ROOF FRAMING PLAN, FOUNDATION & RIDGE DETAILS

2-Car Garage with 1 BR / 1 BA Apartment - Model 30010A

$695.00Price
    • 2-Car Garage
    • Vaulted Ceilings
    • Open Floor Plan
    • Full Kitchen with Island
    • Large Bedroom
    • Walk-In Closet
    • Storage / Bonus Loft
    • Laundry
    • Rear Deck

  • The architectural and structural plans provided in this plan set are to be used as a guide.  Although these plans are construction ready, the foundation and framing systems designed are not site or location specific.  It is the responsibility of the purchaser/builder to assure that all drawings and work performed is in accordance with the latest edition of all applicable national, state, and local building codes.

    Purchaser is recommended to have the plans reviewed by a local architect and/or structural engineer prior to the start of construction to ensure safety and compliance with all local and regional building codes.

    COPYRIGHT MODEL CONCEPTS, LLC © 2025
    All plans, drawings, elevations, renderings, and any other work produced are the exclusive property of Model Concepts, LLC and reproduction or use in whole or in part is strictly prohibited by law without prior authorization or consent.
    For more information, refer to the Terms of Sale and Disclaimers.
